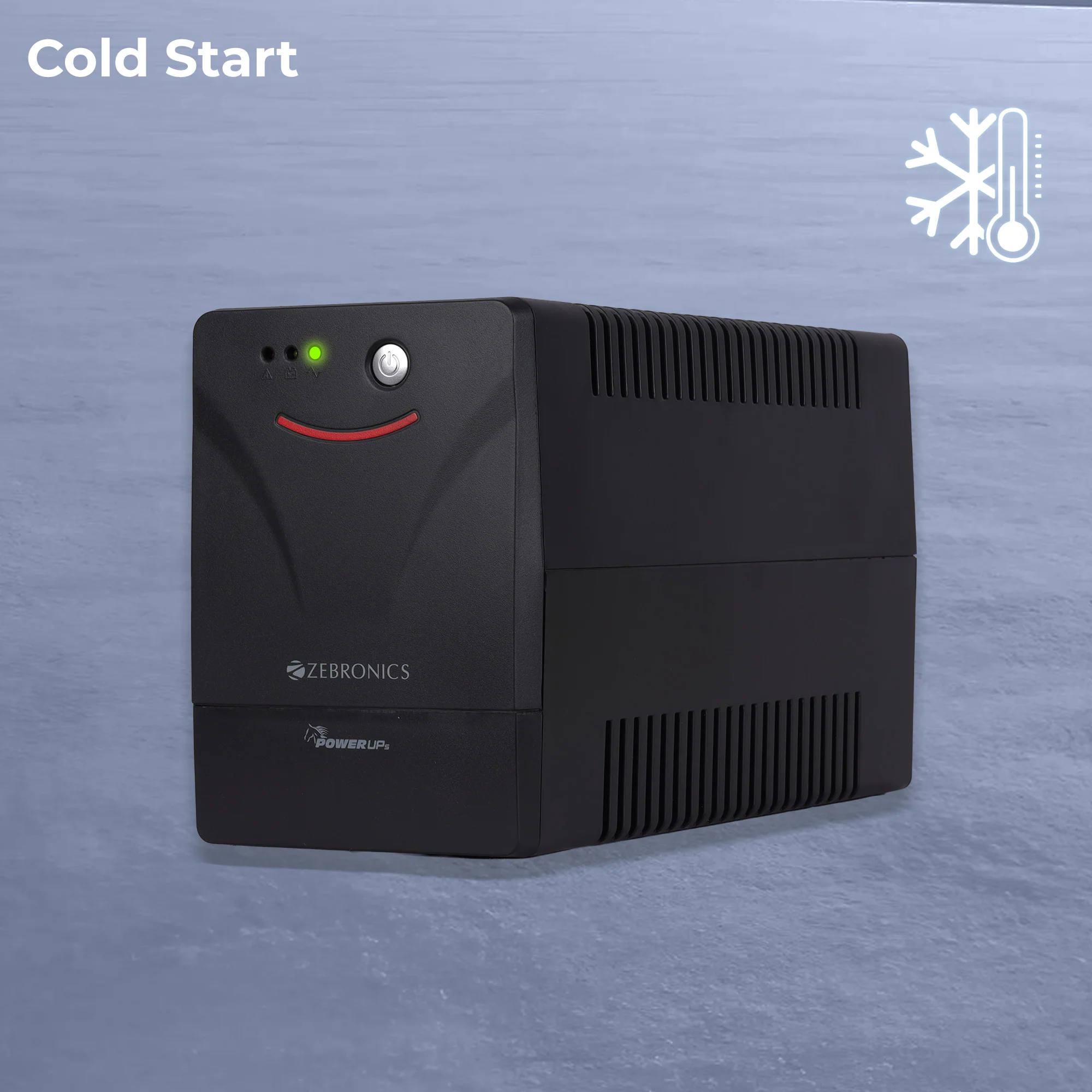

Zeb MLS1255
Features
| Line Interactive UPS |
| Auto Restart on AC Recovery |

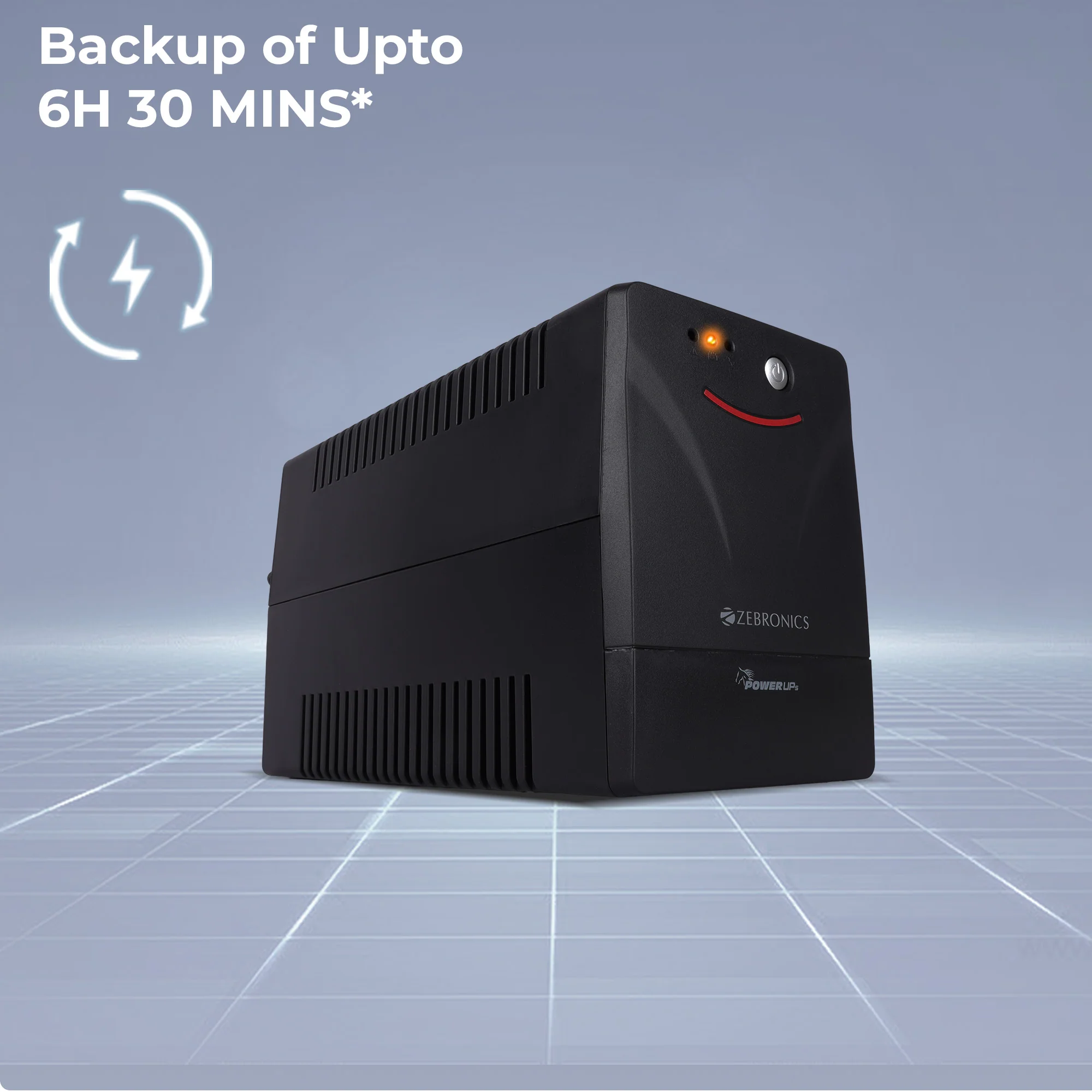

| Backup up to 6 hrs 30 mins* for Micro Consumption Devices |

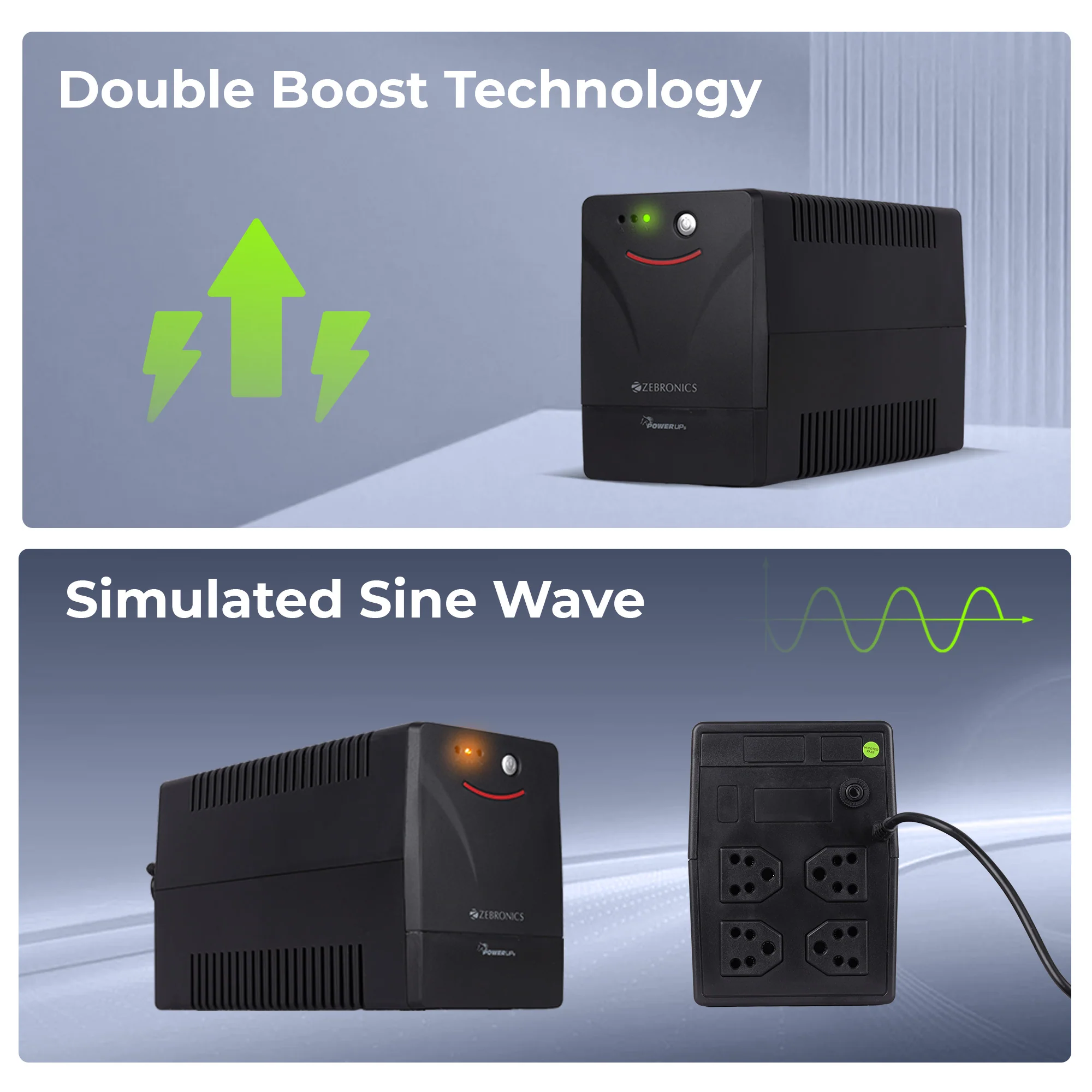

| Double Boost technology |

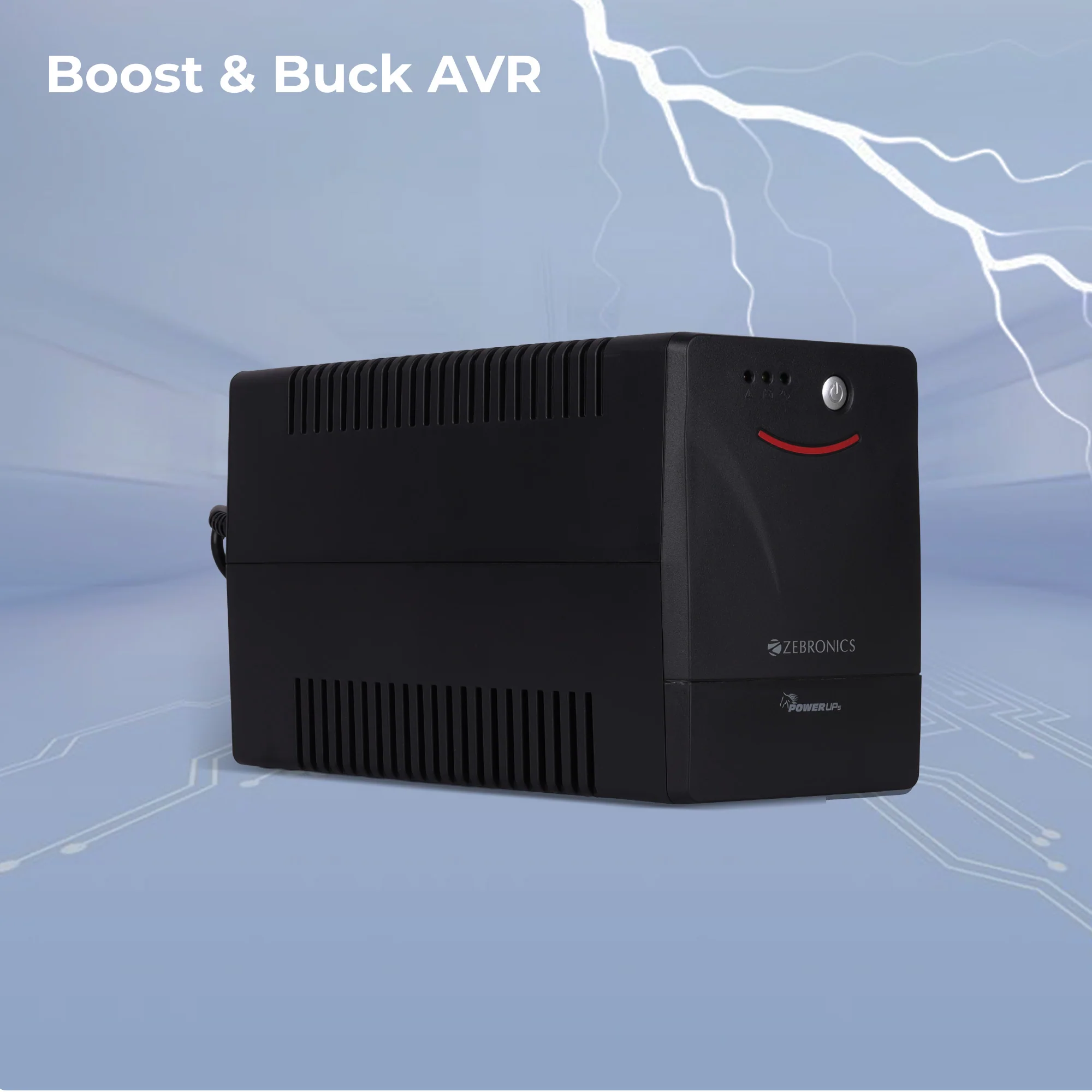

| Automatic Voltage Regulation(AVR) |
| Wide Input Range |
| *Under Testing Conditions with 1 DVR without HDD and 3 Cameras without IR enabled |
Specifications
| Model | ZEB-U1210 | |
| Capacity | ||
| (VA/W) |
1000VA / 600W | |
| Input | ||
| Nominal Voltage |
220-240 VAC | |
| Voltage range | 140-300 VAC | |
| Frequency |
50/60 Hz | |
| Plug Type |
3 Pin Plug |
|
| Input Protection |
Internal Fuse | |
| Output | ||
| Voltage Range (AC mode) |
230VAC ± 15 % | |
| Voltage Range (Batt. Mode) |
230VAC ± 10 % | |
| Frequency Range (Batt. Mode) |
50/60Hz ±1% | |
| Transfer Time |
4-8ms | |
| Waveform |
Simulated Sine Wave | |
| No. of Output Sockets |
4 | |
| Protections |

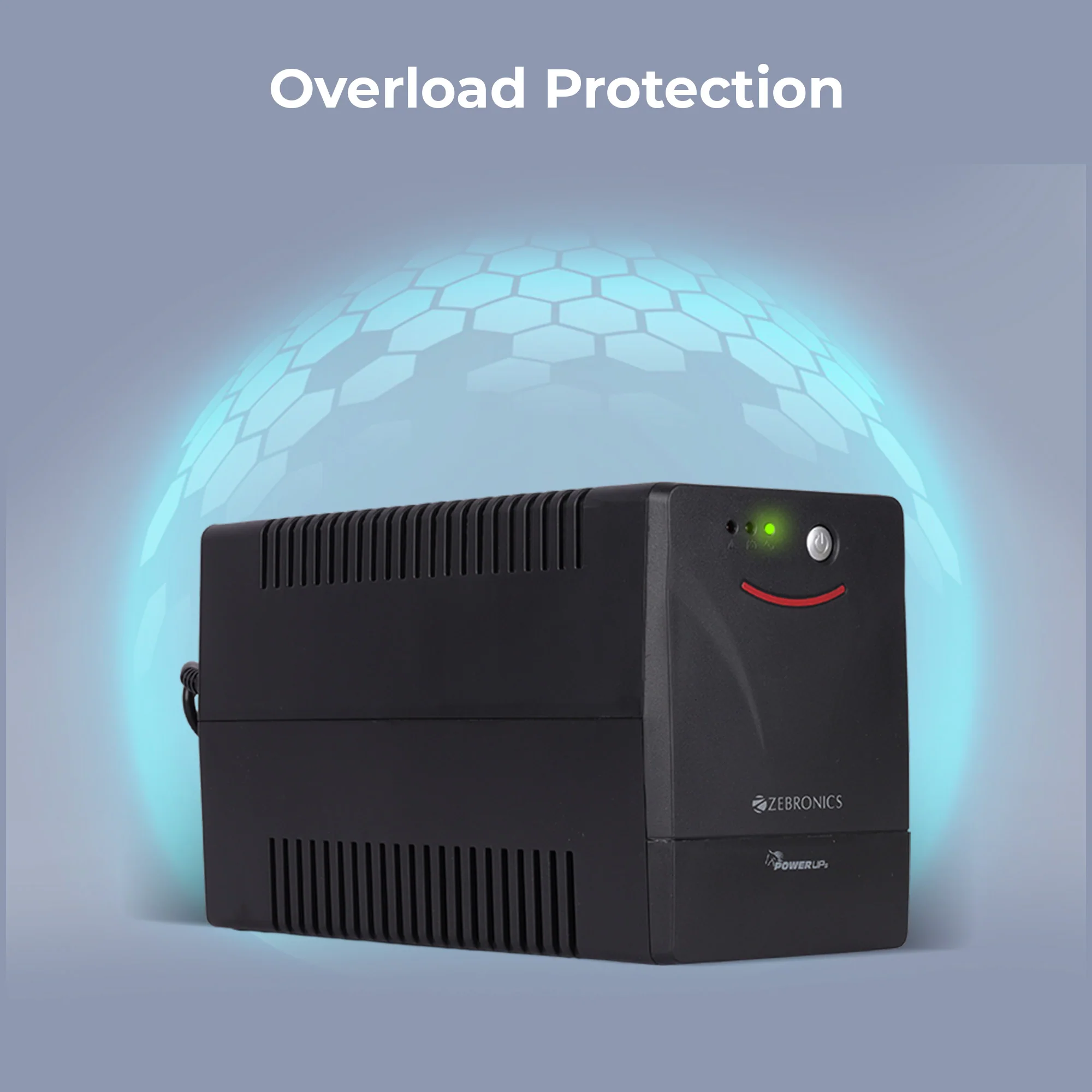

Overload, Short Circuit, Over Discharge & Over Charge | |
| Battery | ||
| Battery type |
12V 7Ah x 2 nos | |
| Charging Current |
1.2A(Max.) | |
| Recharge Time |
6-8h to charge 90% (after complete discharge) | |

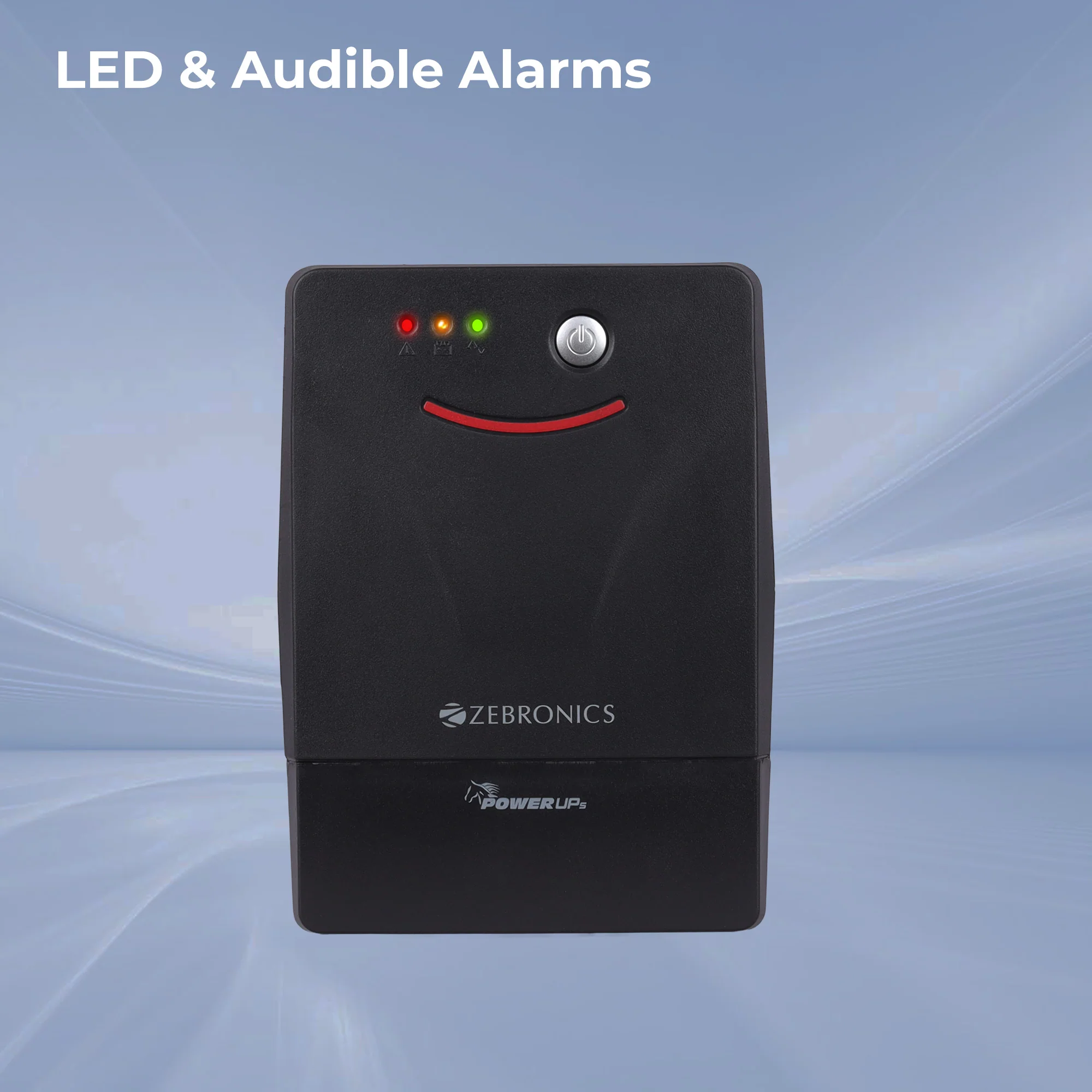

| Indicators | ||
| No. Of LEDs |
3 LEDs | |
| AC Mode | Green LED Glows | |
| Battery mode | Orange LED blinks | |
| Fault Mode |
Red LED Glows | |
| Alarm | ||
| Battery mode | Beeping every 10 Seconds | |
| Low battery | Beeping every 1 Second | |
| Overload | Beeping every 0.5 second | |
| Fault | Continuous Beeping |
|
| Physical | ||
| Dimension (W x D x H) |
13 x 31.4 x 17.5 cm | |
| Net Weight |
7.26kg |
|
| Package Dimension (W x D x H) |
37 x 17.6 x 24.7 cm | |
| Environmental Factors | ||
| Operational Temperature | 0-40⁰C | |
| Noise Level |
< 45dB | |
| Country of Origin |
China | |
|
Package Contents |
||
| UPS | 1 U | |
| QR Code Guide |
1 U | |
$43.70
Original: $145.66
-70%Zeb MLS1255—
$145.66
$43.70Product Information
